In a market where visual impact drives engagement, SOLIDWORKS Visualize transforms CAD data into stunning, photorealistic marketing content. With GPU-accelerated rendering, advanced materials, HDR lighting, and cinematic camera tools, it empowers teams to create studio-quality visuals—fast. Perfect for websites, promos, and presentations, it simplifies the rendering workflow and turns designs into captivating marketing assets.
Here is the Technical Guide to Creating Marketing-Ready Images:
1. Import and configure the 3D Model

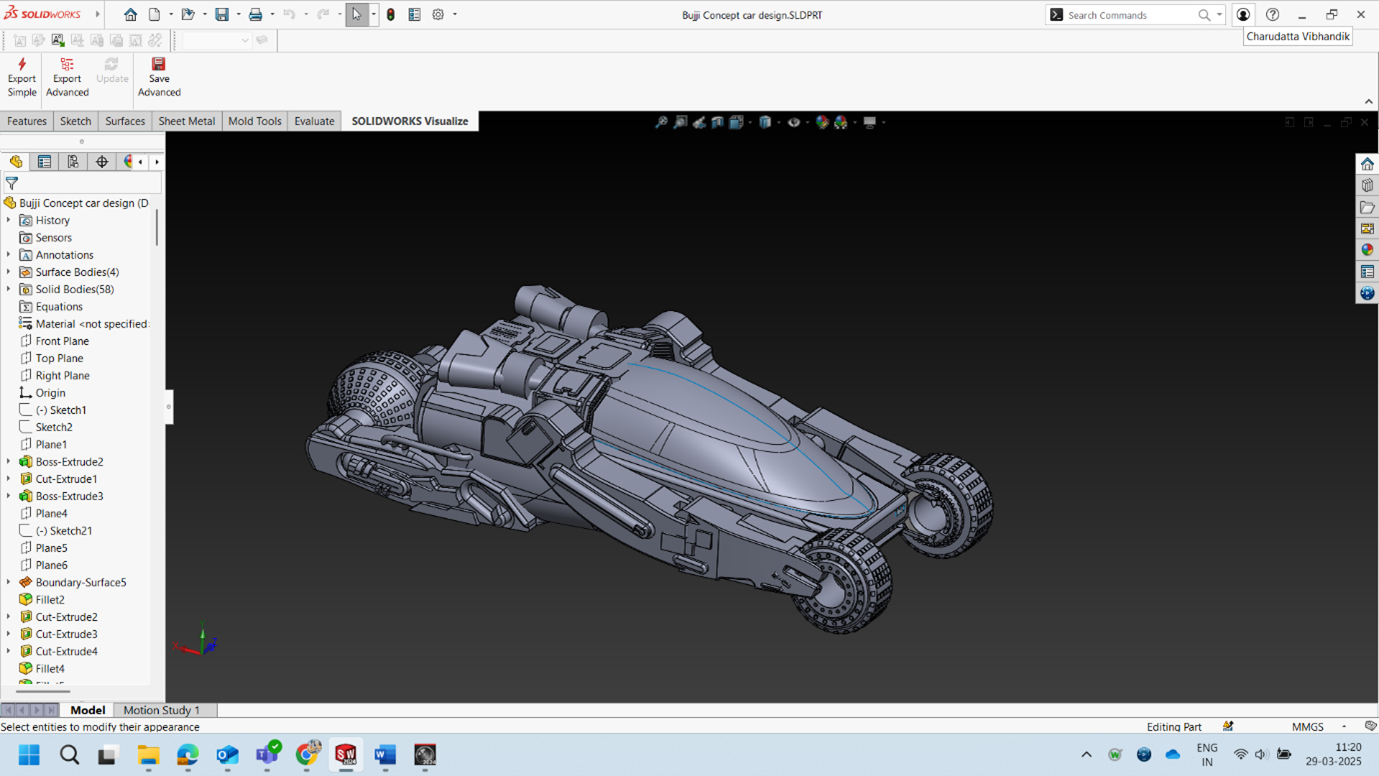

Before initiating the rendering process, it is essential to properly import the CAD model and configure it for optimal performance.
• Ensure the model is in a supported format (SOLIDWORKS files, STEP, IGES, etc.), preserving geometric integrity and assembly structure.
• Enable "Monitor File" for live sync with ongoing CAD updates.
• Check model hierarchy for smooth material assignment and transformations.
• Suppress non-essential components to boost performance.
• Orient the model properly in the scene to reduce setup time later.
2. Apply Physically Accurate Materials and Textures
Materials and textures play a crucial role in visual realism, and proper selection enhances the photorealistic effect.

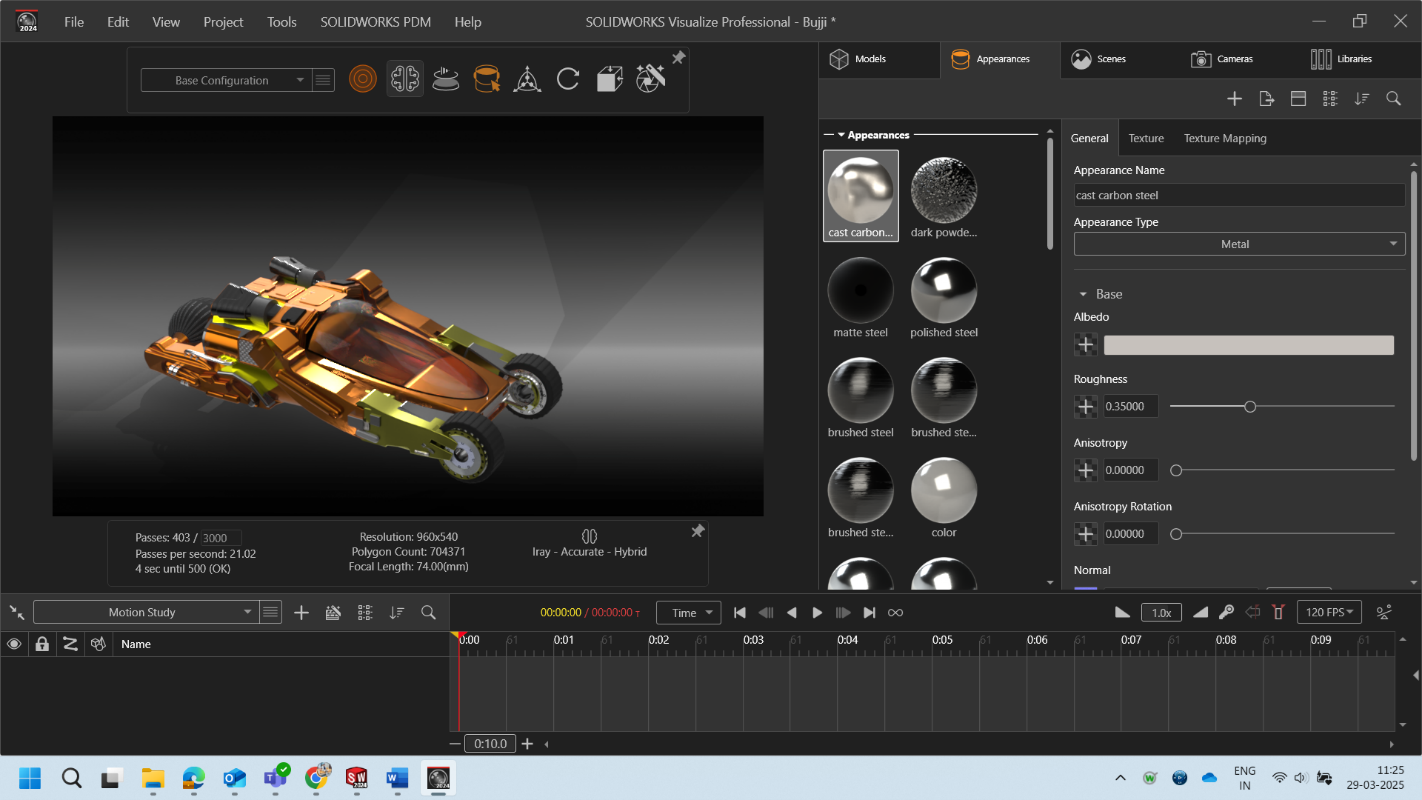

• Utilize Physically Based Rendering (PBR) materials, which accurately simulate surface properties such as roughness, reflectivity, and refraction to improve realism.
• Tweak key attributes like reflectivity, transparency, and bump maps to match material behaviour.
• Apply custom textures and decals for branding and realism.
• Adjust UV mapping to ensure clean, distortion-free texture alignment on complex surfaces.
• Develop a custom material library to maintain visual consistency across multiple renders, reducing the need for repetitive adjustments.
3. Configure Lighting for Enhanced Realism
Lighting is fundamental to scene depth and realism, dictating the final image’s quality and impact.
• Use HDRI environments for natural reflections and ambient light without extra setup.

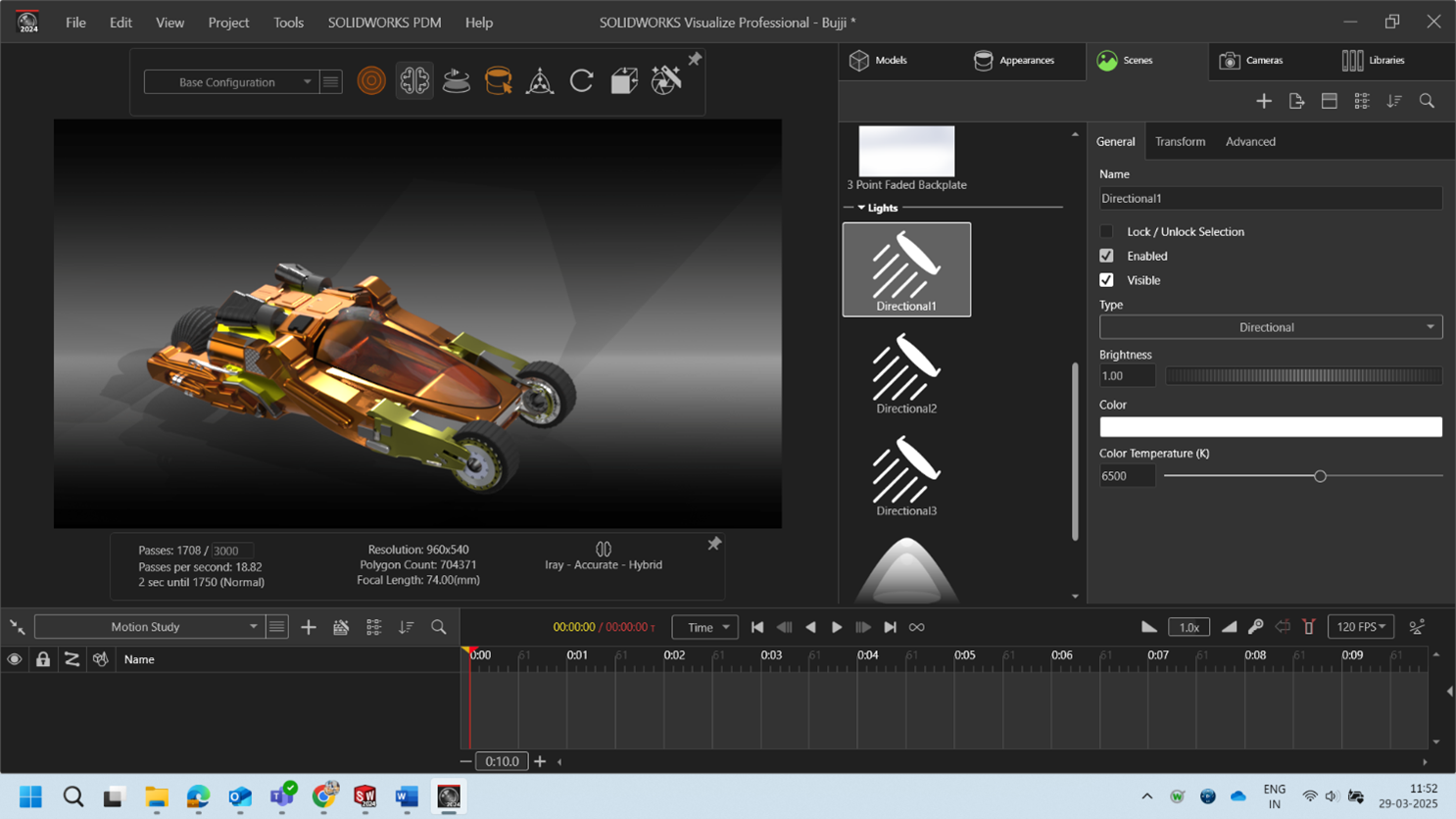

• Add area, point, or spotlights to highlight key features and control scene lighting.
• Soften shadows and light falloff for a more natural, depth-enhancing look.
• Use HDRI environments for natural reflections and ambient light without extra setup.
• Soften shadows and light falloff for a more natural, depth-enhancing look.

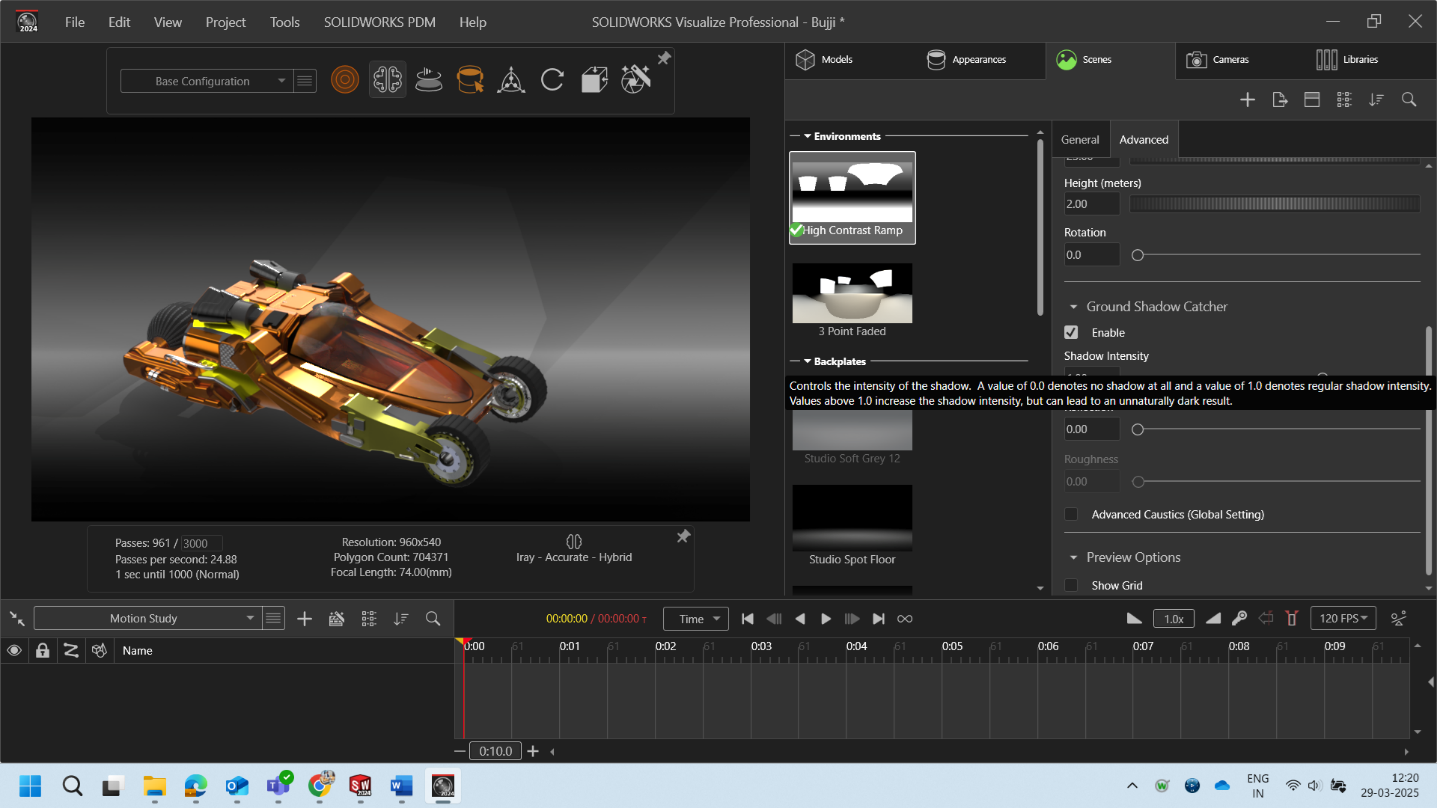

• Enable Global Illumination (GI) and Ambient Occlusion (AO) to add realism and avoid flat shading.
4. Execute Post-Processing for Final Refinements
Post-processing enhances the final image by fine-tuning colours, contrast, and branding elements.
• Adjust brightness, contrast, and saturation within SOLIDWORKS Visualize to refine the visual impact of the render.
• Apply colour correction and white balance adjustments to maintain brand consistency and accurate product representation.
• Overlay logos, watermarks, and branding elements to establish ownership and enhance brand visibility in marketing materials.
5. Fine-Tune Render Settings for Maximum Quality

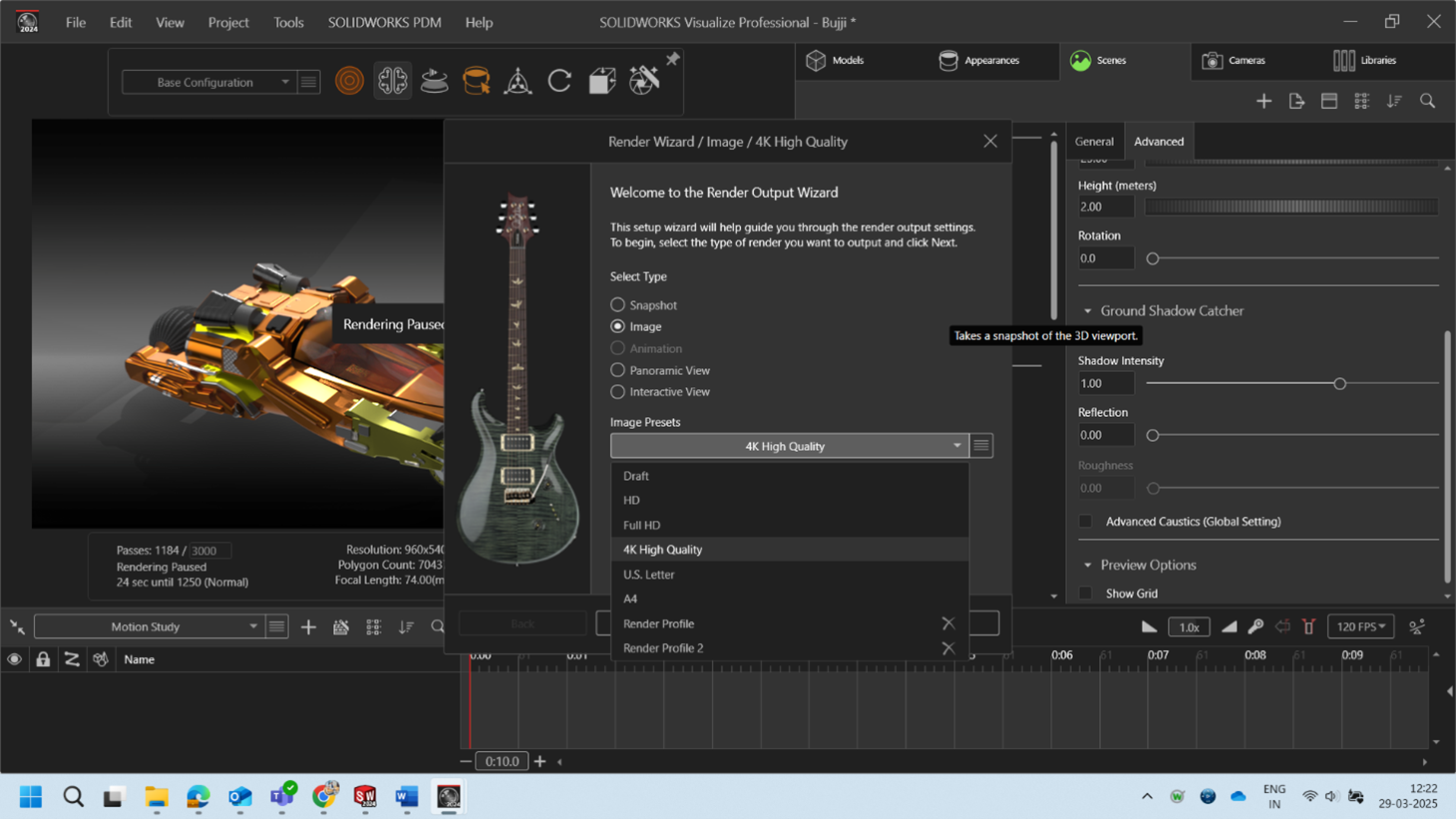

• Choose the right render mode (Fast, Accurate, or Custom) to balance quality and time.
• Turn on denoising to reduce noise and maintain detail efficiently.
• Set resolution based on output—use 4K+ for print, 1080p for web.
• Adjust ray bounces and anti-aliasing for better reflections and surface clarity.
• Use the render queue to batch process multiple views and boost productivity.
• Choose the right render mode (Fast, Accurate, or Custom) to balance quality and time.
• Turn on denoising to reduce noise and maintain detail efficiently.
• Set resolution based on output—use 4K+ for print, 1080p for web.
• Adjust ray bounces and anti-aliasing for better reflections and surface clarity.
• Use the render queue to batch process multiple views and boost productivity.
Conclusion:
Following this technical workflow ensures the production of high-quality, photorealistic marketing images using SOLIDWORKS Visualize. By systematically optimizing materials, lighting, camera settings, and rendering parameters, users can elevate their product presentations, delivering compelling visuals suitable for advertising, promotional campaigns, and professional design showcases.
