Structural Designer

Easily assess product performance scenarios with Abaqus solvers, cloud-based simulation and high-performance computing.

Easily Assess Product Performance During Design with the Proven Abaqus Solver Technology

As part of the scalable and powerful 3DEXPERIENCE® WORKS simulation portfolio, Structural Designer on the cloud-based 3DEXPERIENCE platform enables your designers to efficiently compare the performance of different design options to find the best one quicker, reducing the time and cost of product development.

You Don’t Have to Be an Expert

You Don’t Have to Be an Expert

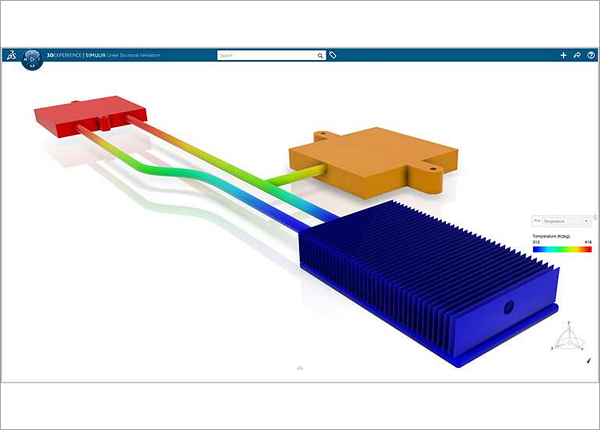

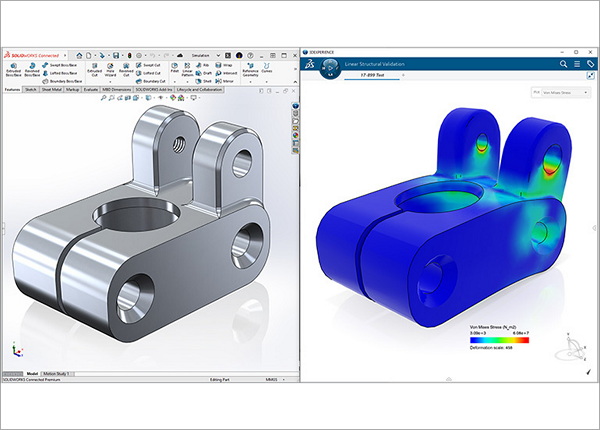

• Evaluation of stress, strain, natural frequency, and temperature.

• Intuitively assess the performance of products under linear static conditions and guide the overall design process.

• Quickly evaluate the strength and stiffness of components for informed what-if design scenarios.

• Easily test product designs with automated modeling and the ability to control accuracy vs. computer time.
Results You Can Count on with Abaqus Solvers

Results You Can Count on with Abaqus Solvers

• High-quality results with automatic mesh generation based on geometry and local mesh control to precisely refine your geometry.

• Quickly set up simulation studies without the need for surface pairs using General Contact, including deformable and intermittent contact between parts.

• Simulation procedures such as linear static, frequency, thermal (steady state), and buckling.

• Restraints, loads, and connections including sliding, bonded contacts, bolts and springs within assemblies.
Stay Productive and Connected on the Cloud

Stay Productive and Connected on the Cloud

• Ability to run multiple simulations and leverage up to 144 cores.

• Seamless workflow between 3DEXPERIENCE Works roles.

• Ability to view, share, annotate, discuss, and manage design and simulation data for closer engineering collaboration.
Have questions about Structural Designer?
