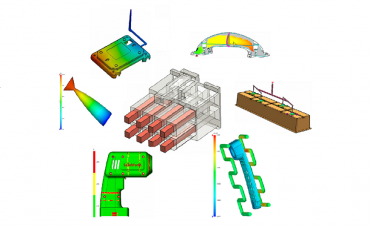

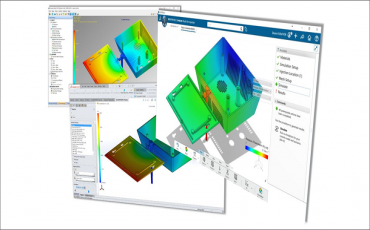

SOLIDWORKS® Plastics delivers easy-to-use simulation for analyzing plastic parts and injection molds. It simulates how melted plastic flows during the injection molding process to predict manufacturing-related defects so you can quickly evaluate part manufacturability while you design.
• Virtually assess the manufacturability and quality of injection molded part designs and tooling
• Leverage easy-to-use simulation to reduce development time and costs
• Evaluate effectiveness of mold colling system designs for the right technical insights at the right time
• Maintain associativity with SOLIDWORKS CAD data and workflows
SOLIDWORKS Plastics Standard | SOLIDWORKS Plastics Professional | SOLIDWORKS Plastics Premium | |||
---|---|---|---|---|---|
Ease Of Use | |||||
SOLIDWORKS Simulation is fully embedded in SOLIDWORKS 3D CAD for ease of use and data integrity. Using the same user interface (UI) paradigms as SOLIDWORKS with toolbars, menus, and context-sensitive right-click menus, ensures rapid familiarization. Built-in tutorials and searchable online help aid learning and troubleshooting. |
|||||
Design Data Reuse | |||||
SOLIDWORKS Simulation supports SOLIDWORKS materials and configurations for easy analysis of multiple loads and product configurations. |
|||||
Materials Database | |||||
With 4,000+ commercial thermoplastic grades, you can browse and select the desired from the customizable built-in material library. |
|||||
Meshing | |||||
SOLIDWORKS Plastics includes these meshing features:
Wizard for mesh generation and analysis setup
Automatic Mesh
Local Mesh Refinement
Global Mesh Refinement
Boundary Mesh (Shell)
Solid 3D mesh
|
|||||
Parallel Computing (Multi-core) | |||||
The 3D Solver benefits from a multi-core CPU (multiple threads). |

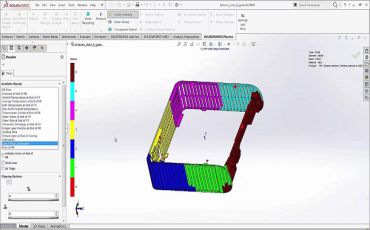

|||||
Filling Phase (1st Stage Injection) | |||||
Predicts how material fills the cavity. Results include distributions of pressure and temperature within the cavity, and detection of potential short shots and weld lines. |
|||||
Automatic Gate Location(s) | |||||
Defines up to 10 injection locations on the part cavity automatically. SOLIDWORKS Plastics adds injection locations onto the part based on the geometry and optimized balanced fill pattern. |
|||||
Instantaneous Fill Time Plot | |||||
Predicts the plastic flow pattern through the cavity at the end of fill. |
|||||
Sink Mark Analysis | |||||
Predicts the depth of sink marks after the part has been ejected and cooled to room temperature. |
|||||
EDrawings Support | |||||
Results can be exported to eDrawing® |
|||||
Fill Time | |||||
Time needed to fill the whole mold. |
|||||
Ease Of Fill | |||||
Displays the quality of the injection process with ‘confidence of fill’ legend. |
|||||
Results Adviser | |||||
User assistant for interpreting results. |
|||||
Nominal Wall Thickness Adviser | |||||
Analyzes the part thickness and locates the high thickness ratio. |
|||||
Pressure At End Of Fill | |||||
Displays the maximum pressure to fill the cavity. |
|||||
Flow Front Temperature | |||||
Displays the melt front temperature history. |
|||||
Temperature At End Of Fill | |||||
Displays the Cavity Temperature field at the end of fill. |
|||||
Shear Rate | |||||
Displays the shear rate reached at the end of fill to check the injection process quality. |
|||||
Cooling Time | |||||
Estimates cooling time at fill time analysis. |
|||||
Weld Lines | |||||
Displays weld lines formed at locations of the part where two (or multiple) melt fronts meet. |
|||||
Air Traps | |||||
Shows the location where high pressure air may be trapped inside the cavity. |
|||||
Sink Marks | |||||
Displays the location of sink marks. |
|||||
Frozen Layer Fraction At End Of Fill | |||||
Displays the fraction of frozen material into the part at end of fill. |
|||||
Clamp Force | |||||
Displays the minimum clamp force for the current injection process. |
|||||
Cycle Time | |||||
Displays the cycle time for the current injection process. |
|||||
Symmetry Analysis | |||||
Avoid simulating both cavities in a symmetrical mold layout, saving computer time for the simulation. |
|||||
Packing Phase (2nd Stage Injection) | |||||
Evaluates the material freezing process in the cavity. Predicts the temperature to evaluate hot spots, gate freeze, and cycle time. Distributions of pressure, stress, and shrinkage results are also available. |
|||||
Runner Balancing | |||||
Determines the runner parameters to balance filling between parts. |
|||||
Runner Design Wizard | |||||
Automates the process of creating common flow control devices and components such as sprues, runners, and gates. |
|||||
Sprues And Runners | |||||
Quickly and easily simulate the impact of the sprues and runners layout. |
|||||
Hot And Cold Runners | |||||
Hot runners are initially filled with hot polymer at the start of the filling simulation. |
|||||
Multi-cavity Molds | |||||
Simulates multiple cavities of the same part in the same mold. |
|||||
Family Molds | |||||
Simulates a set of different cavities parts in the same mold. |
|||||
Mold Inserts | |||||
Include the impact of mold inserts on the simulation |
|||||
Volumetric Shrinkage | |||||
Displays volumetric shrinkage distribution at the end of fill or pack. |
|||||
Density At End Of Pack | |||||
Displays density distribution at post-filling end to check the pack phase quality. |
|||||
Exports STL, NASTRAN | |||||
Enables you to export part geometry in STL or NASTRAN formats |
|||||
Export With Mechanical Properties ABAQUS®, ANSYS, DigiMat® | |||||
Exports mesh, residual stress, fiber orientation and material data to run non-linear analysis. |
|||||
Cooling Lines | |||||
Simulates the coolant flowing inside for the mold cooling analysis. |
|||||
Baffles And Bubblers | |||||
Specific cooling line for narrow channel into the cavity. |
|||||
Conformal Cooling Channels | |||||
Cooling passageway follows the shape or profile of the mold core or cavity to perform rapid uniform cooling process. |
|||||
Runner Domain Category | |||||
Domain category assigned to the runner allows easy selection for runner’s conditions. |
|||||
Sink Mark Profiles | |||||
Displays the location of sink marks and their depth. |
|||||
Mold Temperature At Cooling End | |||||
Displays the mold temperature distribution at cooling end. |
|||||
Displacement Due To Residual Stress | |||||
Displays the displacement distribution due to in-mold stress. |
